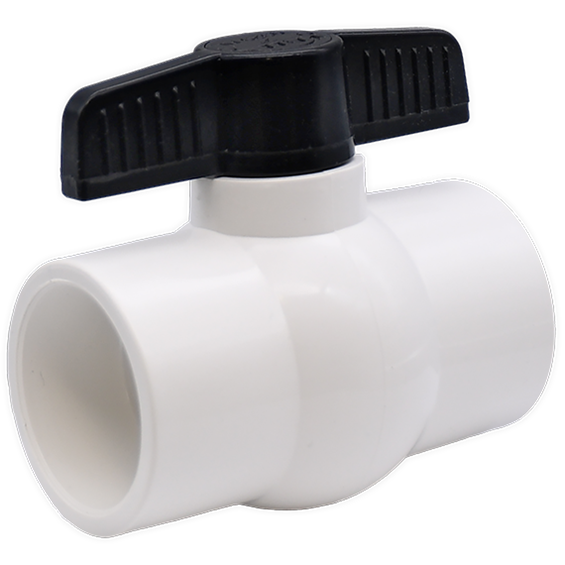

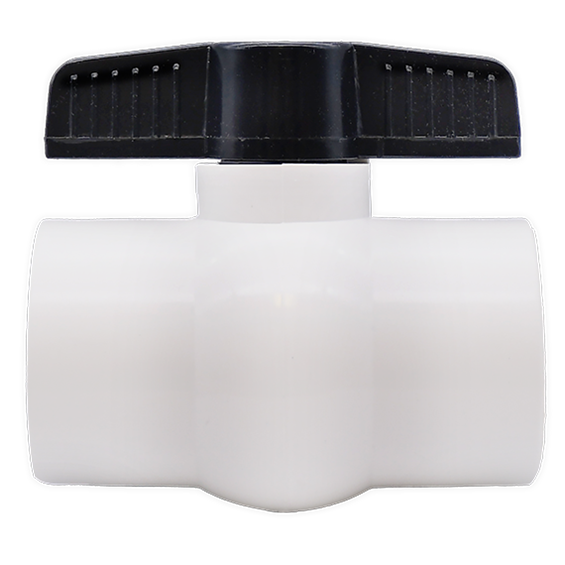

2" PVC Ball Valve

Model PS-BVS20
  • 2-in. high-impact, durable PVC ball valve
  • Useful for a variety of applications, including water supply, swimming pools, and irrigation

Where to buy

Specifications
  • Description: Suitable for both Schedule 40 & 80 PVC pipe
  • Ball Material: PVC
  • Size: 2 in.
  • Color: White
  • Handle Type: Tee
  • Seat Material: EPDM
  • Connection Type: Slip
  • Handle Material: ABS
  • Primary Material: PVC
  • Temperature Range: 41°F to 122°F (5°C to 50°C)
  • Maximum Pressure Rating: 150 PSI @ 73°F (23°C)
  • Stem Packing Material: EPDM
  • Port Size: 1.81 in.
Dimensions
  • Width: 3.54 in.
  • Height: 5.28 in.
  • Length: 5.62 in.
  • Weight: 1.36 lb.
Certifications
  • NSF/ANSI 372
  • No Lead
