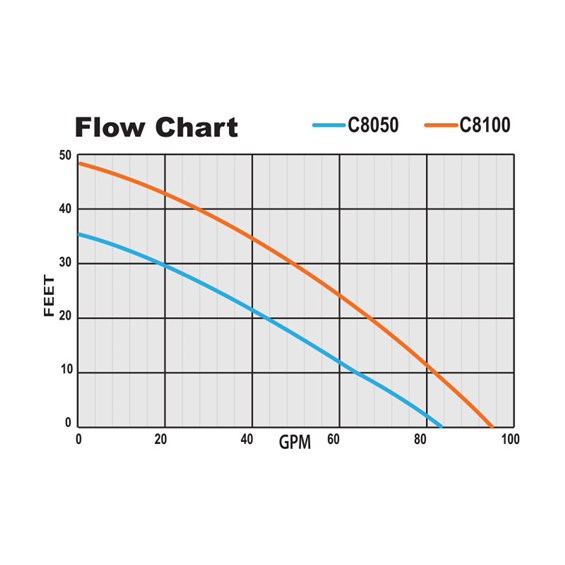

  • Flow Chart C8 Series
  • C8_Chemical_pump

  • Flow Chart C8 Series
  • C8_Chemical_pump

C8 Series Chemical Pump

Features

  • All 304 stainless-steel construction
  • Available horsepower: 1/2 HP and 1 HP
  • Energy-efficient Permanent Split Capacitor (PSC) motor
  • Intended for pumping non-flammable fluids compatible with pump component materials
  • Premium pump construction
  • Dual carbon/ceramic/Viton seals
  • Thermally protected
  • Stainless-steel shaft
  • Pump solids up to ¼"
  • Upper and lower sealed ball bearings
  • 304 stainless-steel impeller
  • 20-foot pump cord
  • 1-year limited warranty

Where to buy

COMPATIBLE SWITCHES:

Dual Float Vertical Float Tether Float
DFC1 VS TS
DFC1.5 VSC1.5 TSC1.5
DFC2 VSC2 TSC2

Specifications

  C8050 C8100
Motor HP ½ HP 1 HP
Flow @ 10 ft GPH (3 m) 3,540 GPH 4,980 GPH
Flow @ 10 ft GPM (3 m) 59 GPH 83 GPM
Max Head 26 ft/7.9 m 36 ft/11.0 m
Pump Discharge 2 in/5.1 cm 2 in/5.1 cm
Amps @ 10 ft Total Head 4.7 A 11.3 A
Weight 33 lb/15.0 kg 40 lb/18.1 kg
Width 8.8 in/22.2 cm 10 in/25.4 cm
Depth 6.4 in/16.2 cm 7.9 in/20.0 cm
Height 14.0 in/35.6 cm 15.3 in/38.7 cm
