Pro Series 1000

FEATURES AND BENEFITS:

Model PHCC-1000
  • 1,000 GPH at 10-foot lift
  • 12-volt DC sump pump with decades of proven reliability
  • Dual float switches for added reliability
  • Automatically switches to battery power when AC fails
  • Backup will assist primary pump if excessive amounts of water are entering the sump pit
  • Recharges battery automatically
  • Designed for use with maintenance-free or wet-cell or batteries
  • System pumps intermittently for days
  • 3-year warranty

 PDF_download_icon_v2 PHCC-1000 Product Brochure

 PDF_download_icon_v2 PHCC-1000 Product Manual

Where to buy

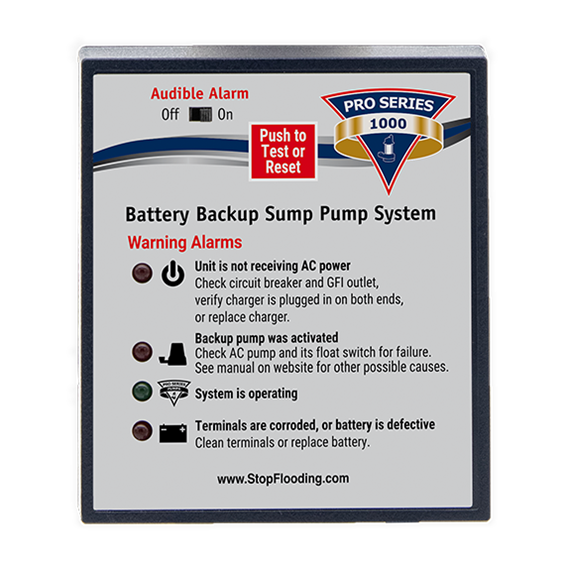

Controller Features:

  • Unique monitoring controller detects irregularities of pump and power conditions
  • Lights and alarms pinpoint problems and solutions on the control panel
  • Alarm can be silenced during a power outage

Specifications

  PHCC-1000 PHCC-1850 PHCC-2400
Flow @ 10 ft. GPH (3 M.) Head 1,000 GPH 1,850 GPH 2,400 GPH
Amps @ 10 ft. Total Head 6.5 Amps 10 - 12 Amps 20 Amps
Outlet 1.5" PVC adapter 1.5" PVC adapter 1.5" PVC adapter
Voltage 12 VDC 12 VDC 12 VDC
Power Input 115VAC, 60 Hz 115VAC, 60 Hz 115VAC, 60 Hz
Charger Strength Voltage/Current 12 VDC / .4 Amps 12 VDC / 1.6 Amps 12 VDC / 13 Amps
Motor Type DC DC DC

Controller Comparison

  PHCC-1000 PHCC-1850 PHCC-2200
Will sound alarm indicating:
 - Battery needs water Dot Dot Dot
 - Battery is old and needs to be replaced Dot Dot Dot
 - Battery is discharged Dot Dot Dot
 - Cable is loose or terminals are corroded Dot Dot Dot
 - Power, fuse or circuit breaker has failed Dot Dot Dot
 - Pump has been activated; Check the main pump for failure Dot Dot Dot
The alarm can be silenced during a power outage Dot Dot Dot
Automatically test pump weekly   Dot Dot
USB Data Port (Ability to remotely notify which alert has activated or what specific maintenance might be needed)   Dot Dot
Remote Terminal (Ability to remotely notify of a problem or needed maintenance)   Dot Dot
Can accommodate similar standby batteries to extend the run time   Dot Dot
Backup pump runs off AC power as well as battery power     Dot
Displays percentage of power remaining in the battery     Dot

Pumping Time*

  PHCC-1000 PHCC-1850 PHCC-2400
B-1000 50 Hours Not Recommended Not Recommended
B-2200 100 Hours 60 Hours 50 Hours
(2) B-2200 Not Recommended 120 Hours 100 Hours
B12-90 100 Hours 60 Hours 50 Hours

* Run time based on 10% duty cycle. Run times may vary based on water flow.

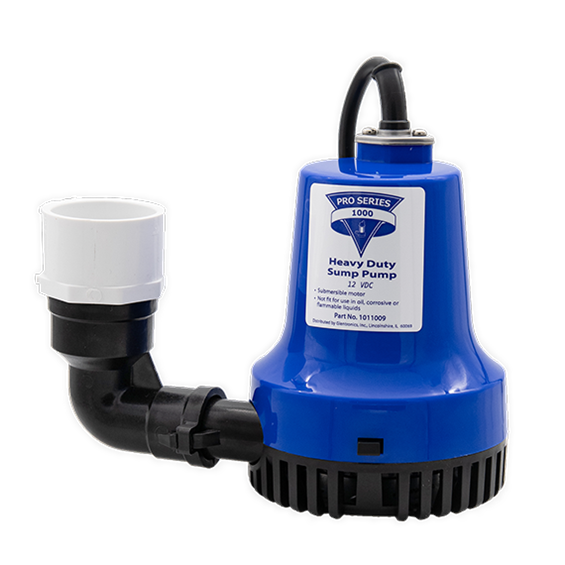

Construction and Included Components

Pump Housing Non-corrosive ABS
Impeller Fiber filled polycarbonate
Shaft Material Stainless steel
Float Switch Caged dual float, Micro-reed Switches
Pump Dimensions
(W x D x H)		 8.5” x 4.5” x 6.5”
(21.6 x 11.4 x 16.5 cm)
Shipping Weight 9.0 lb (5.4 Kg)

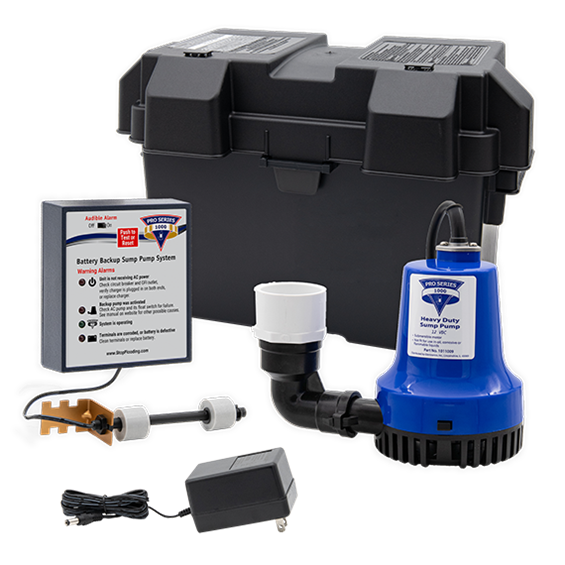

Included with System

  • 12 VDC sump pump
  • Control unit with fluid sensor
  • Dual float switch
  • Snap-on non-corrosive screen
  • 1-1/2" Pipe adapter
  • Battery cap that accommodates fluid sensor
  • Battery box
