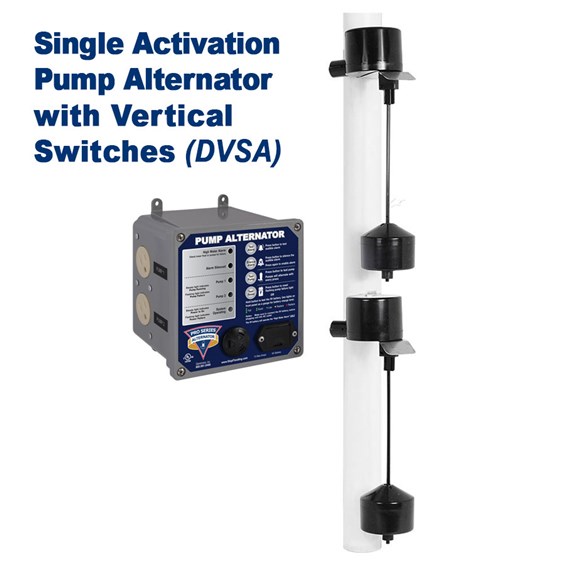

Single Activation Pump Alternator

Model DVSA
  • If one pump fails the other pump will take over and an audible alarm will sound
  • Runs ONE pump at a time
  • Can handle up to 1 HP pumps (Each pump 15 Amps Max.)
  • Includes two vertical switches

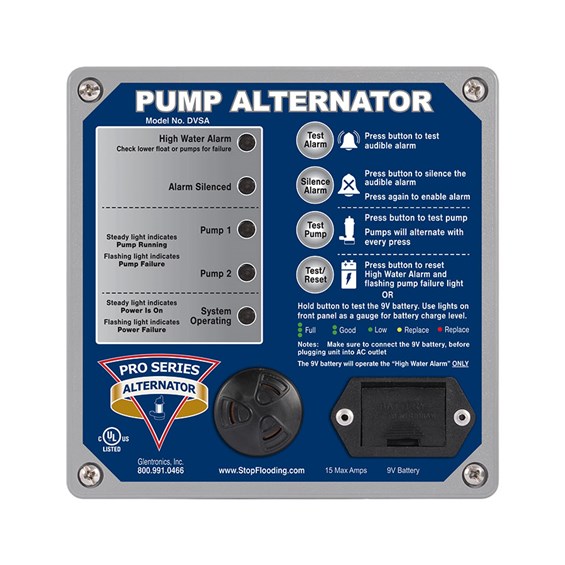

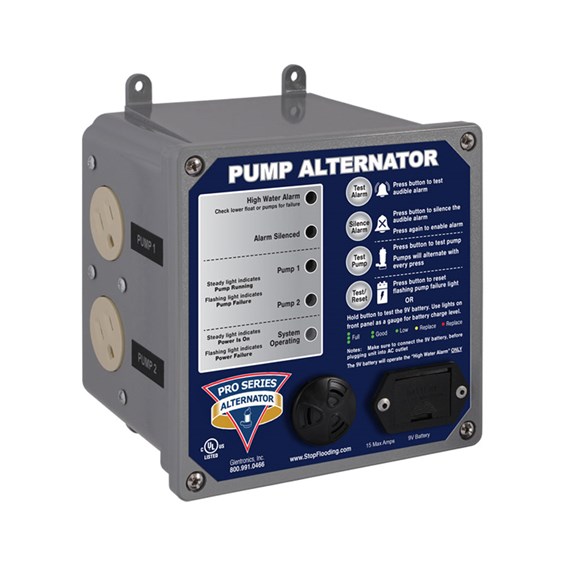

Controller Features

  • Prolongs pump life by alternating two primary pumps
  • Runs ONE pumps at the same time if extra capacity is needed
  • If one pump fails the other pump will take over and an alarm will sound
  • Flashing light will indicate which pump is failing

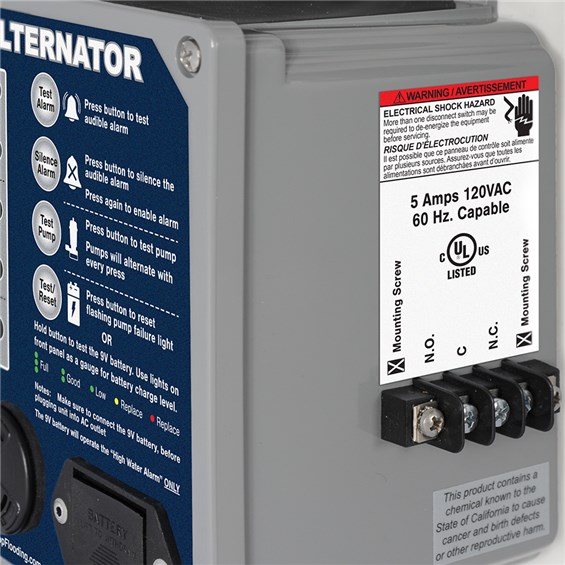

  • Remote terminal allows the unit to connect to the Pro Series WiFi Module, security system, auto dialer or other dry contact-based device
  • Includes two low-voltage vertical float switches
  • If one float switch fails the other float switch will take over and an audible alarm will sound
  • Angled receptacles to accept a standard or right-angled pump plugs
  • Can handle up to 1 HP pumps (Each pump 15 Amps Max.)
  • High Water Alarm with accompanying LED indicator, audible alarm, and 9V battery backup
  • 9' long power cord

 PDF_download_icon_v2 Download: DVSA Single Pump Alternator Brochure



Where to buy



COMPATIBLE SWITCHES:

Sump Pumps Sewage Pumps



Remote Notification

The Pro Series CONNECT Line of Pumps have the ability to send email or text notifications when there is an issue or needed maintenance.

PS WiFi Module
Pro Series CONNECT WiFi Module (PS-WIFI)

Notification with the USB Data Port:

  • With USB data port simply plug/attach the Pro Series CONNECT Module to your Pro Series 2400 Backup system and the module will act as a gateway to the internet
    • Receive specific text or email alerts telling you exactly what is going on in the home

Notification with the Remote Terminal

  • Connects to a home security, auto dialer, or other dry contact based device
    • Receive text or email alerts, notifying you of an issue or needed maintenance

Now, you can ‘be in-the-know when you’re on-the-go’.
